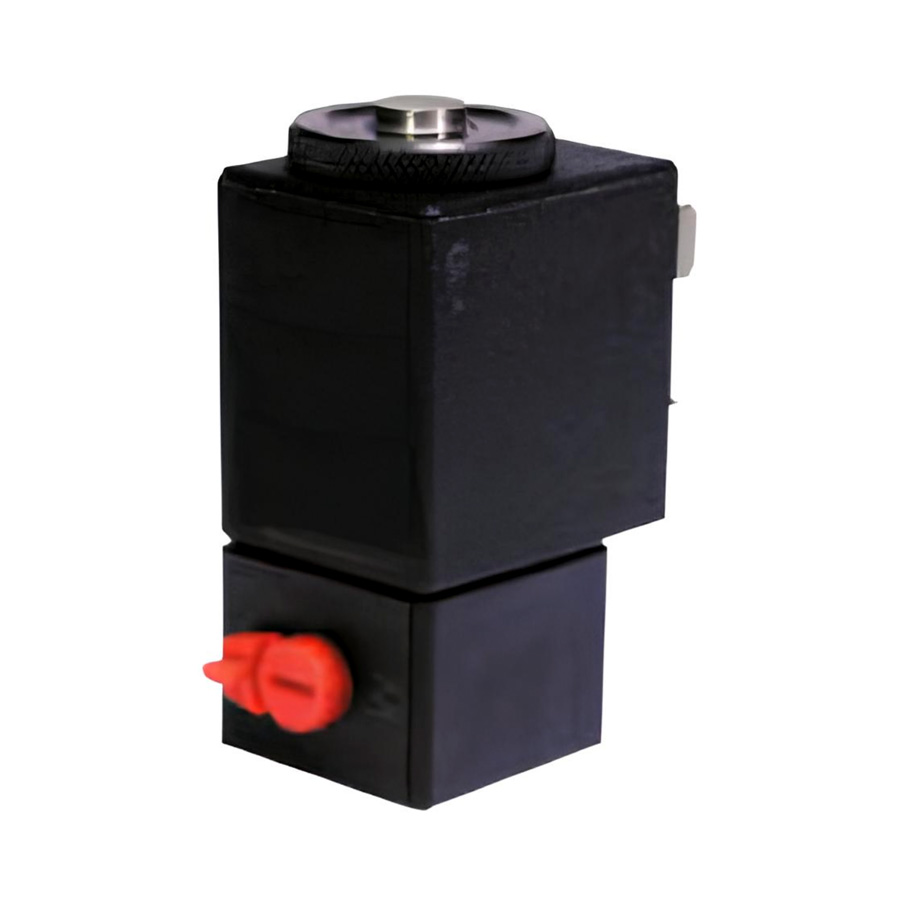

22 mm INTERSOL

2/2, 3/2;
Manifold mounting

Technical features

Medium	Air, neutral gases and liquids
Operation	Direct acting 2-way and 3-way valves, normally closed and normally opened, universal, with manual override
Operating pressure	0 …15 bar
Flow (kv factor)	0,6 … 1,0 (Cv: 0.04 … 0.06)
Mounting	Flange mount
Orifice	1,2 …. 1,8 mm (0.05 … 0.07”)
Response time	8 … 15 ms Response time measured according to ISO 12238
Life time	25 million cycles
Ambient/media temperature	-15 … +50 °C (+5 … +122°F) Air supply must be dry enough to avoid ice formation at temperatures below +2 °C (+35°F).
Materials	Body: brass, PA Seal: NBR, FPM, EDPM
