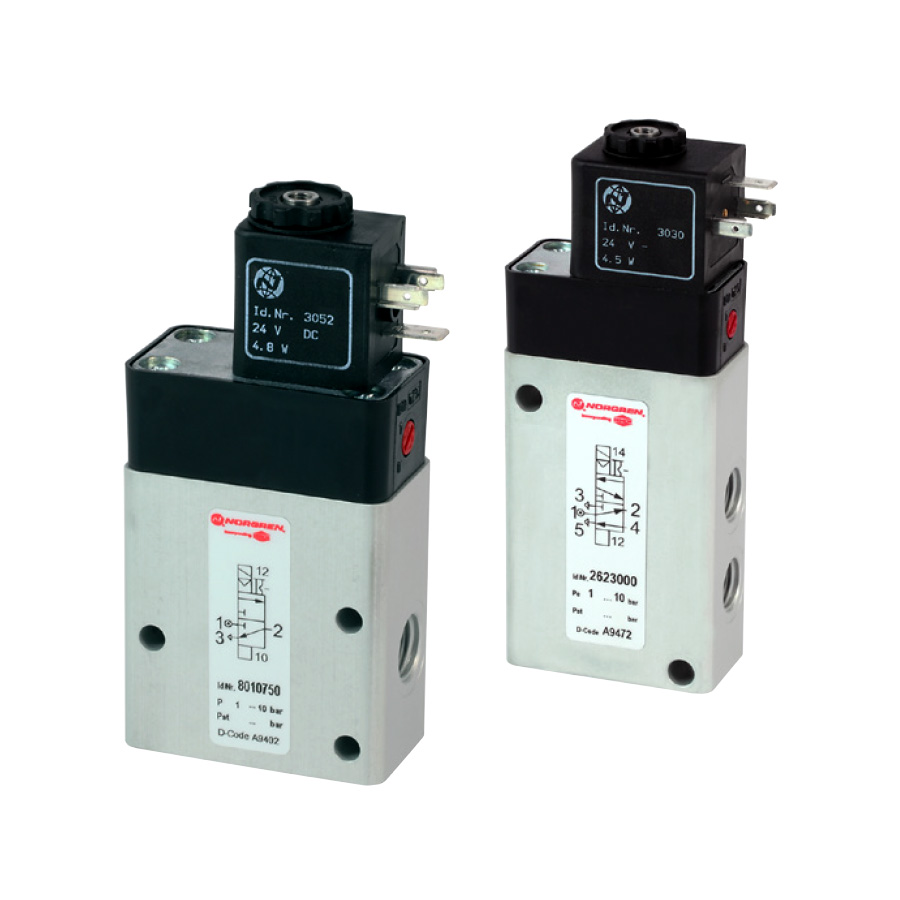

26230, 80107 NAMUR & INLINE

3/2 & 5/2

Technical features

Medium	Filtered, lubricated or non-lubricated Air Compressed ai
Actuation	3/2, 5/2 and 5/3-way piston slide valves indirectly operated electromagnetically
Operating pressure	2 … 8 bar (29 … 116 psi) 1 … 10 bar (14,5 … 145 psi )
Orifice	6 mm (G1/4), 12 mm (G1/2)
Port size	G1/4 NAMUR, G1/4, G1/2
Installation position	Any, preferably magnet vertical
Flow direction	Fixed
Fluid/Ambient temperature	–10 … +50°C(14 … 122°F) Um das Einfrieren der Teile zu vermeiden, muss die Druckluft unter +2°C (+35°F) frei von Feuchtigkeit und Schmiermittel sein!
Materials	Housing: Aluminium Pilot flange: plastic Seal: NBR
Additional models	Upon request
Flow conversion	Cv US gallon/min (water) = l/min (air) x 0.001 Kv m³/h (water) = l/min (air) x 0.000906
