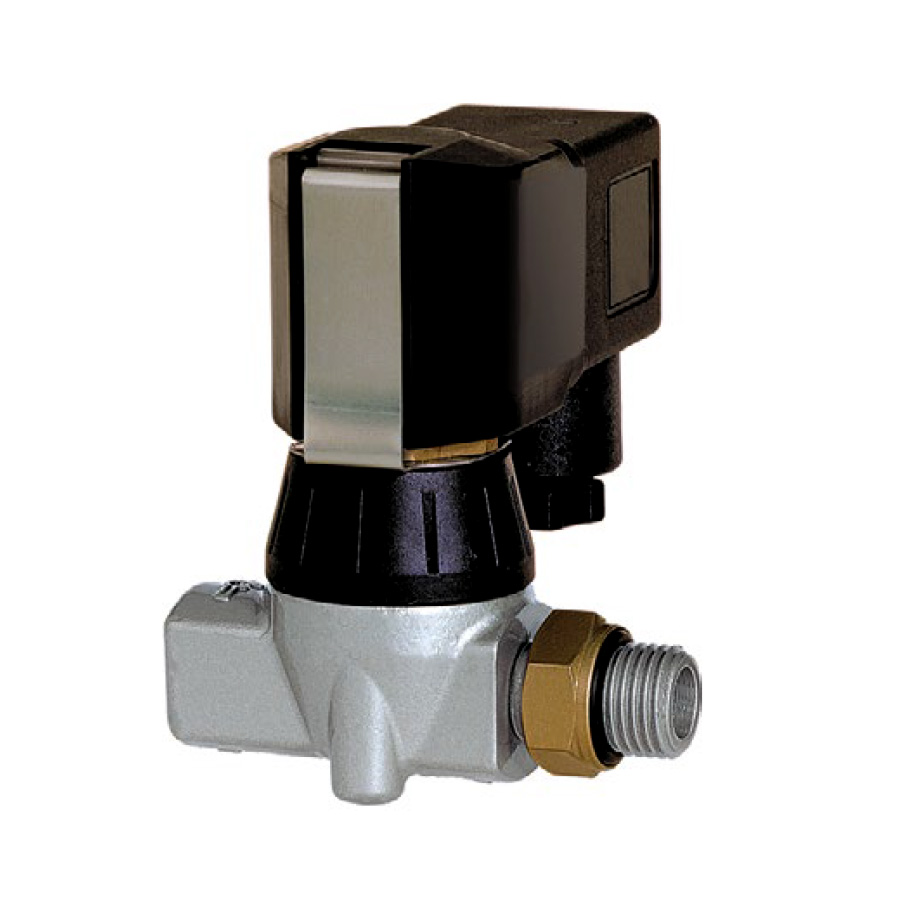

84660 / 84670 / 84680 / 84690

3/2-way valve

Technical features

Medium	Filtered, lubricated resp. non-lubricated air or neutral liquid fluids
Switching function	Normally closed
Operation	Indirectly solenoid actuated
Mounting position	Optional, preferably solenoid vertical on top
Flow direction	Determined
Port size	DN 1,6, DN 3
Operating pressure	1 … 10 bar (14,5 … 145 psi)
Fluid temperature	–10 … +60°C (+14 … +140°F)
Ambient temperature	–10 … +60°C (+14 … +140°F)
Material	Body: Aluminium Seat seal: TPU Internal parts: Stainless steel, PPS
