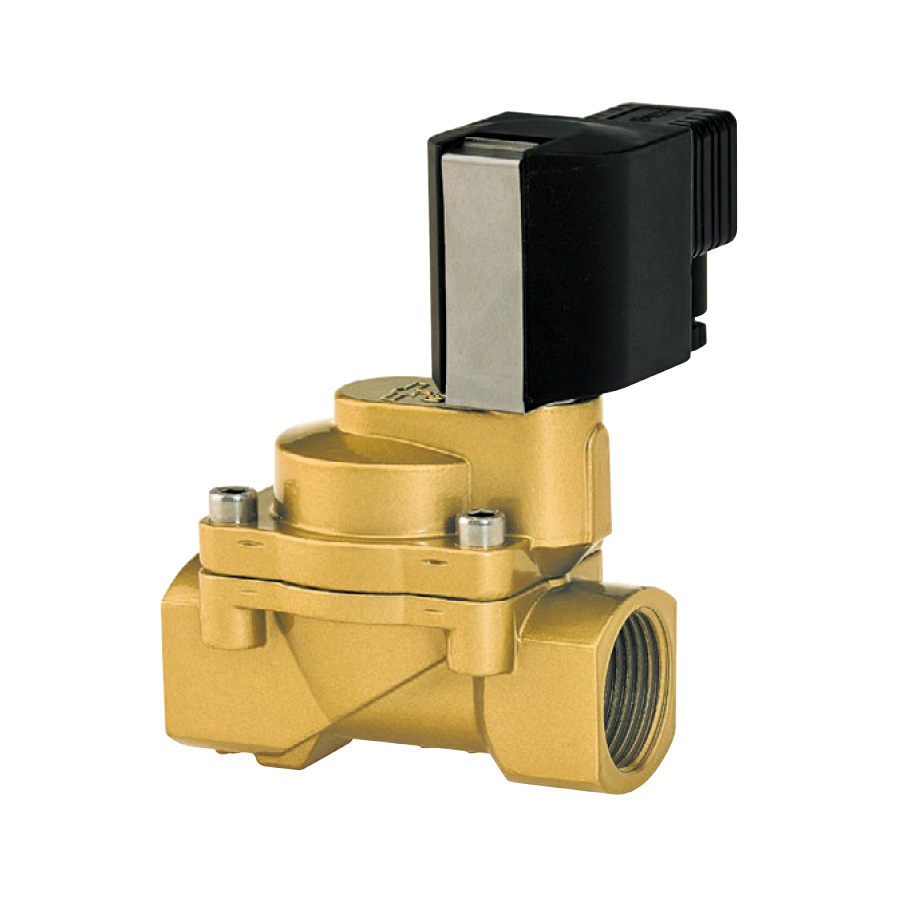

85360/85370

2/2-way piston valves

Technical features

Medium	Neutral gases and liquids
Switching function	Normally closed
Operation	Indirectly solenoid actuated
Mounting position	Optional, preferably solenoid vertical on top
Flow direction	Determined
Port size	G1/4, G3/8, G1/2, G3/4, G1, G1 1/4, G1 1/2, G2 1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT, 2 NPT
Operating pressure	0,5 … 40 bar (7 … 580 psi)
Fluid temperature	–20 … +90°C (–4 … +194°F))
Ambient temperature	–20 … +50°C (–4 … +122°F)
Material	Body: Brass (CW617N) Seat seal: NBR Internal parts: Stainless steel, Brass, PTFE/Carbon
