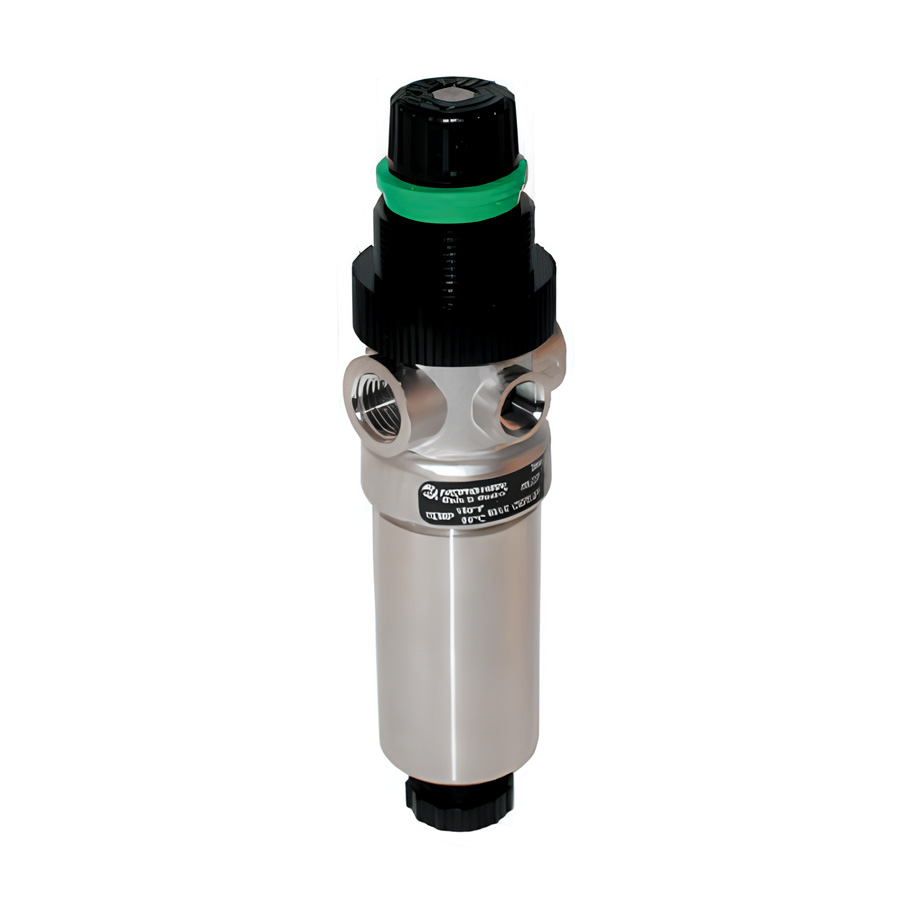

B05 Series

Miniature Filter/regulator (stainless steel)

Technical features

Medium	Compressed air or neutral gases Other media on request
Operating pressure	20 bar max (290 psi)
Pressure range	0,3 … 8,5 bar (4 … 123 psi), 0,3 … 3,5 bar (4 … 50 psi)
Element	5 or 40 μm
Diaphragm	Relieving or non-relieving
Gauge ports	1/8 PTF
Ambient/Media temperature	Actetal bonnet -25 … 66°C (-13 …+150 °F) T-handle -25 … 80°C (-13 …+176 °F) -40°C (-40 °F) version on request Air supply must be dry enough to avoid ice formation at temperatures below 2°C (+35 °F).
Materials	Body, valve and bowl: 1.4104 (316) stainless steel Bonnet: 1.4104 (316) stainless steel with T-handle or Acetal adjusting knob Valve seat: Acetal Springs: 1.4319 (302) stainless steel Drain: stainless steel or Acetal Element: sintered PE Elastomers: FPM, automatic drain NBR
