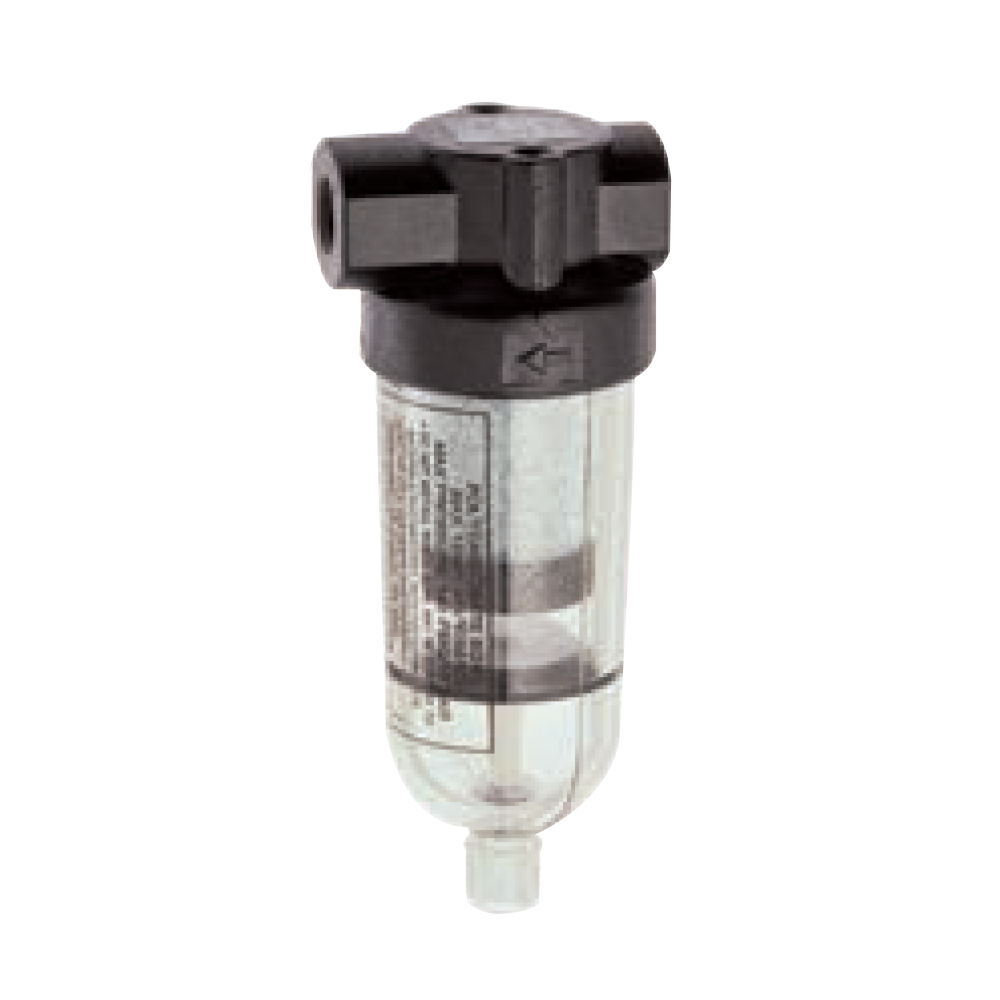

F39 Series oil removal filter

Miniature Puraire® oil removal filter

Technical features

Product Type	Filters
Medium	Compressed air only
Maximum inlet pressure	10 bar (145 psi) Transparent bowl 17 bar (246 psi) Metal bowl
Filter element	0,01 μm
Remaining oil content	0,01 mg/m3 at +21°C (+69°F)
Port size	G1/8 or G1/4
Bowl	31 ml
Drain	Manual or automatic
Ambient/Media temperature	Transparent bowl -34 … +50°C (-29 … +122°F) Metal bowl -34 … +65°C (-29 … +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F) <p>Note: Install an F07 filter with a 5 μm filter element upstream of the F39 filter for maximum service life.</p>
Materials	Body: Zinc alloy Bowl: Plastic or Zinc alloy Element: Synthetic fiber and PL foam Seals: NBR
