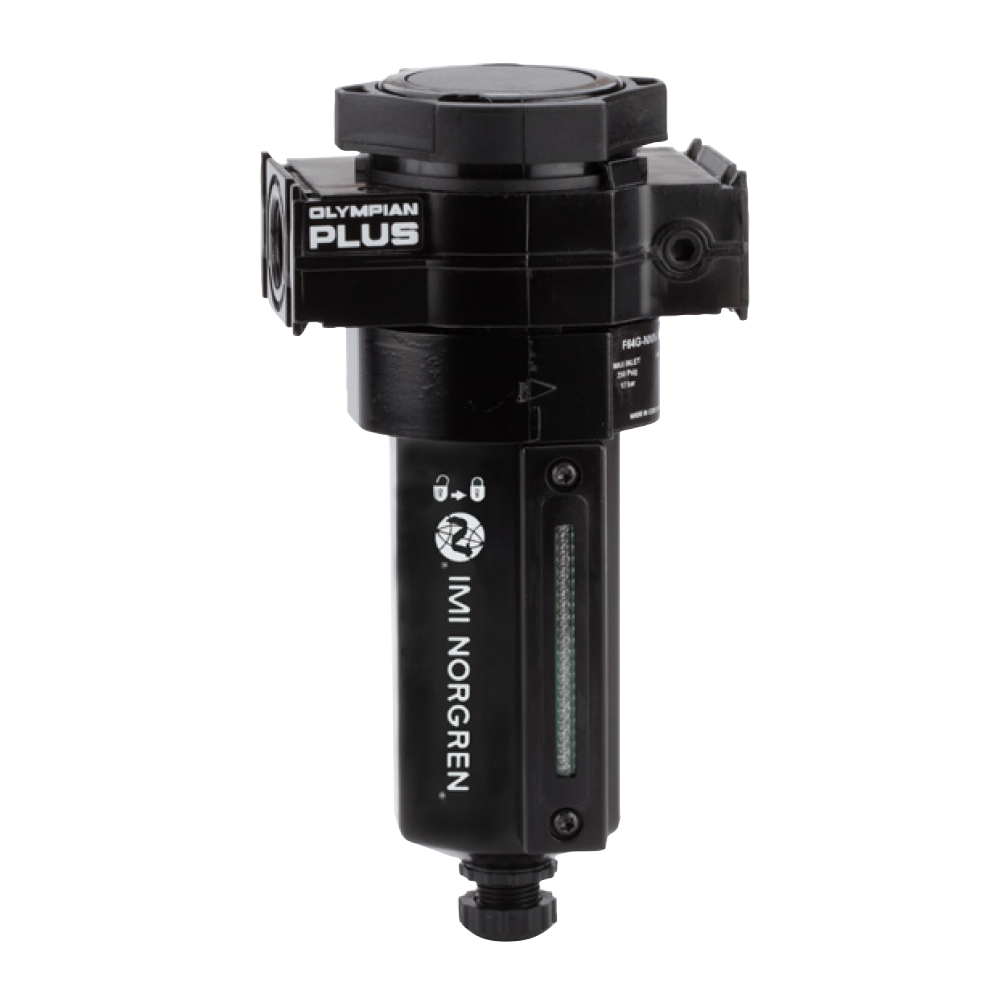

F64G – Olympian Plus Plug-In System

General purpose filter

Technical features

Medium	Compressed air only
Maximum operating pressure	17 bar (246 psi)
Filter element	40 μm (standard) 5 μm (optional)
Port sizes	1/4”, 3/8”, 1/2” or 3/4”
Drain	Manual or automatic
Automatic drain conditions	Pressure to close drain: > 0,3 bar (4.3 psi) Pressure to open drain: < 0,2 bar (2.9 psi) Minimum air flow to close drain: 0,6 dm3/s (1.3 scfm)
Service life indicator	Without (standard) With on request
Bowl size	0,2 litre (7 fluid oz)
Standard compliances	II 2G Ex h IIC T6 Gb II 2D Ex h IIIC T85° Db
Ambient/Media temperature	-20° … +80°C ( -4 … +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F)
Materials	Body and yoke: Zinc alloy Connection piece: Aluminium Metal bowl: Aluminium Prismatic liquid level indicator: Grilamid Filter element: Sintered plastic Element: Sintered bronze or plastic Elastomers: NBR Elastomers: NBR
