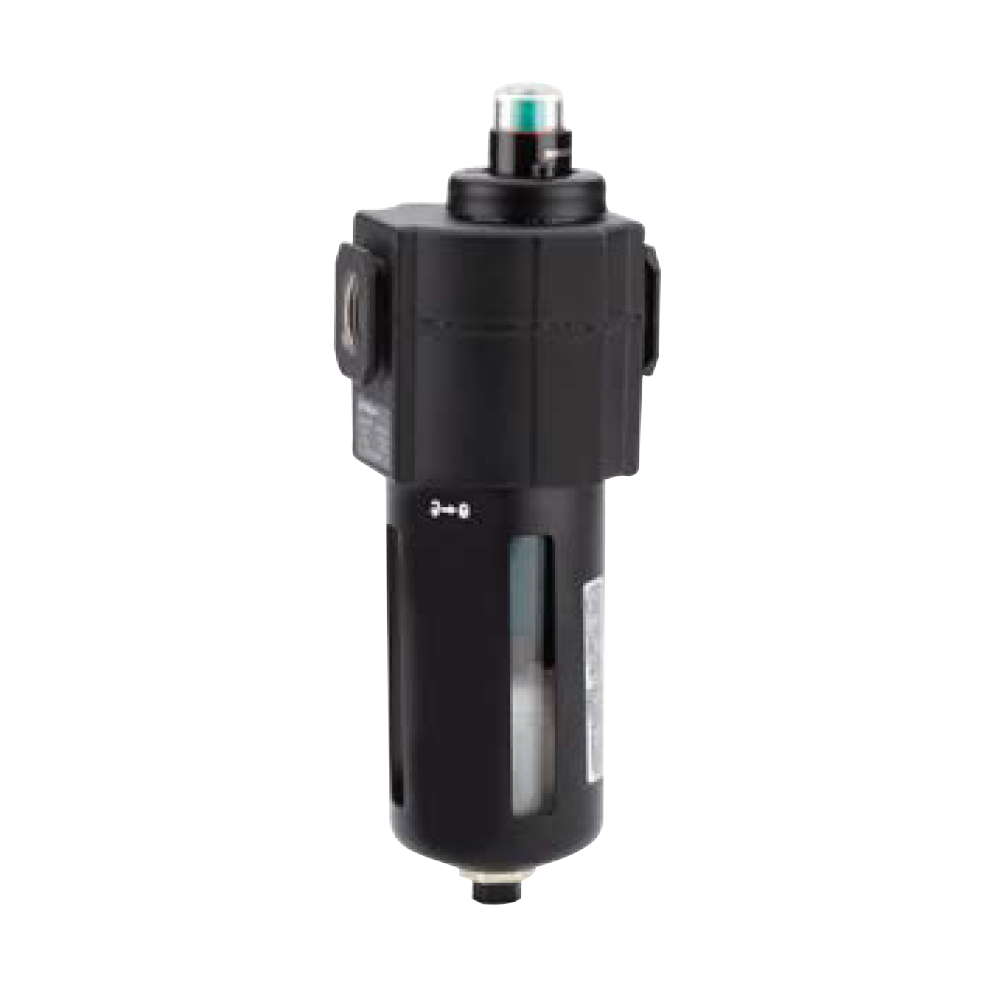

F74C, F74H – EXCELON® oil removal filter

High efficiency oil removal filters

Technical features

Product Type	Filters
Medium	Compressed air only
Maximum operating pressure	Transparent bowl: 10 bar (145 psi) Metal bowl: 17 bar (250 psi)
Remaining oil content	0,01 mg/m3 at +21°C (69°F)
Particle removal	To 0,01 μm
Port size	G3/8, G1/2, G3/4 3/8 PTF 1/2 PTF , 3/8 PTF
Flow	Maximum flow to maintain stated oil removal performance F74C: 16 dm3/s, F74H 28 dm3/s at port size: 1/2” Operating pressure: 6,3 bar (91 psi)
Drain	Manual, automatic
Automatic drain operating conditions (float operated)	Bowl pressure required to close drain: > 0,35 bar (5 psi) Bowl pressure required to open drain: ≤ 0,2 bar (2.9 psi) Minimum air flow required to close drain: 1 dm3/s (2 scfm) Manual operation: depress pin inside drain outlet to drain bowl
Ambient/Media temperature	Transparent bowl: -34 … +50°C (-29 … +122°F) Metal bowl: -34 … +65°C (-29 … +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F). Note: Install an F74G filter with a 5 μm filter element upstream of the F74C/H filter for maximum service life.
Materials	Body: Die cast aluminium Bowl: Transparent PC with steel guard or die cast aluminium Element: Synthetic fibre & PE foam Elastomers: CR & NBR
