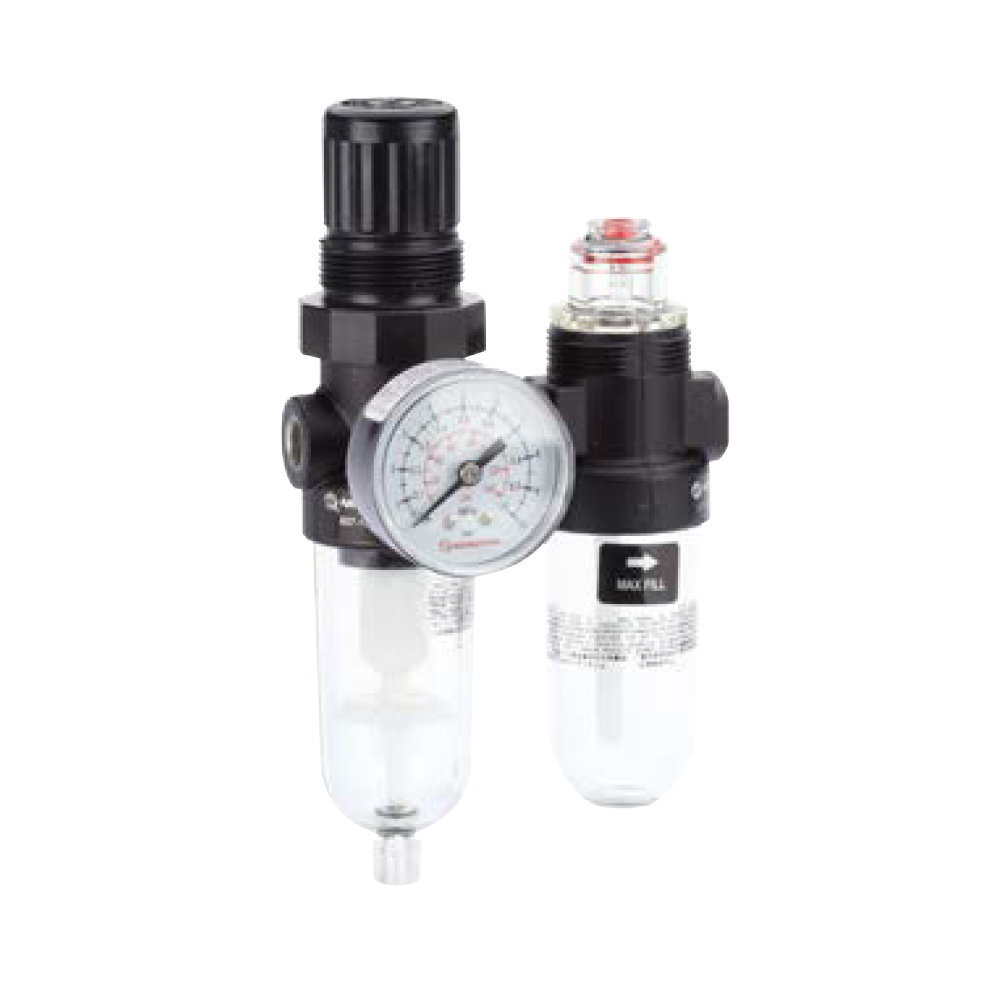

P1H Series combination unit (FRL)

Miniature Filter/Regulator-Lubricator

Technical features

Product Type	Combination Units
Fluid	Compressed air
Maximum pressure	10 bar (145 psi) Transparent bowl 17 bar (246 psi) Metal bowl
Pressure range	0,3 … 7 bar (4 … 101 psi), 0,3 … 3,5 bar (4 … 50 psi), 0,1 … 0,7 bar (1 … 10 psi)
Filter element	5 or 40 μm
Port size	G1/8 or G1/4 Rc1/8 (Gauge)
Bowl	31 ml
Flow	Start point 0,24 dm3/s
Drain	Manual or automatic
Ambient/Media temperature	Transparent bowl -34 … +50°C (-29 … +122°F) Metal bowl -34 … +65°C (-29 … +149°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials	Body: Zinc alloy Bonnet: Acetal (Regulator) Knob: Acetal Bowl: Plastic or Zinc alloy Filter element: Sintered PE Valve: Brass Sight dome: PA Seals: NBR
