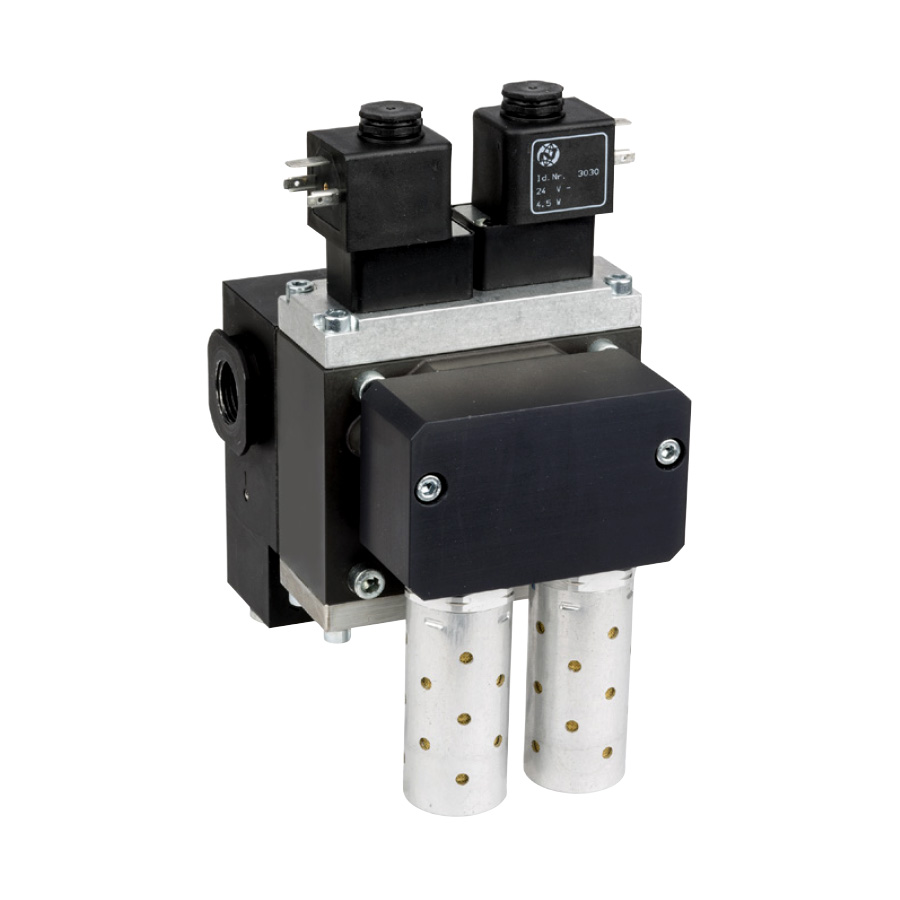

SCSQ

Solenoid actuated, integrated soft start function, safety valves

Technical features

Medium	Compressed air, filtered ≤ 5 μm, lubricated or non-lubricated
B10 (median)characteristic service live value on basis ISO 19973	10 x 106 cycles
Mounting position	Preferably upright with solenoids on top
Press control	Valves are not approved for press clutch and brake applications
Ambient/Media temperature	-10 … +60°C (+14 … +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (35°F).
Materials	Housing: Aluminium Seals: PUR, NBR
