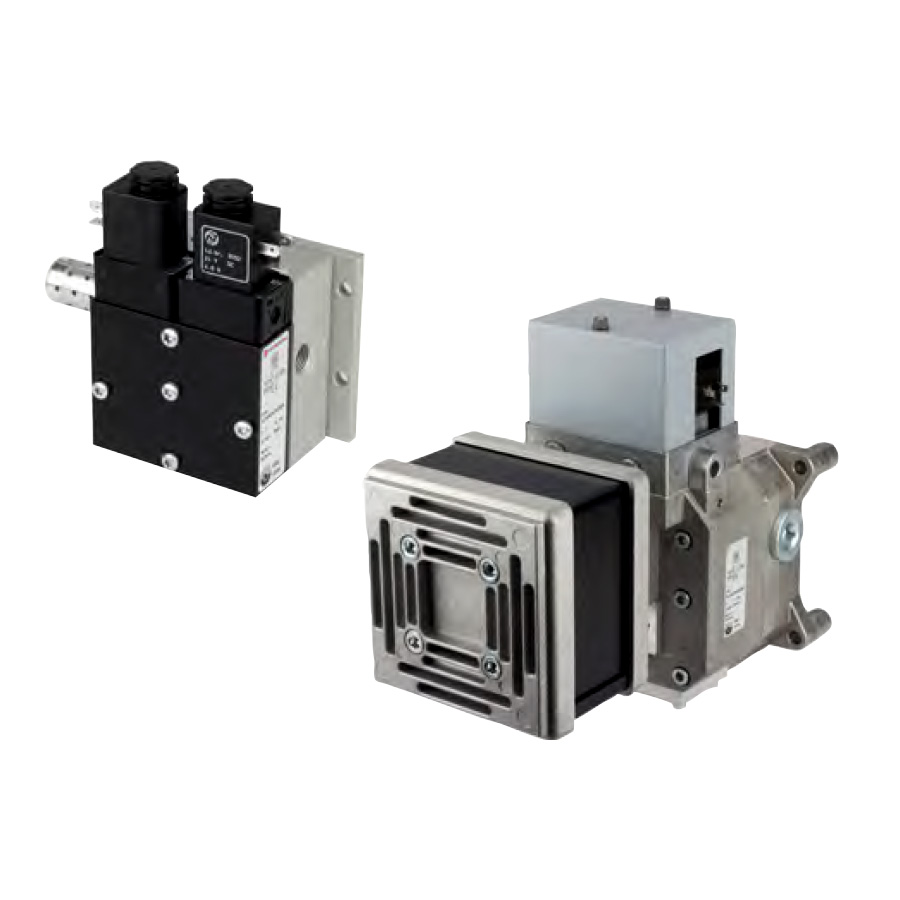

SCVA

Solenoid actuated safety valve

Technical features

Medium	Compressed air, filtered ≤ 50 μm, lubricated or non-lubricated
B10 (median) characteristic service live value on basis ISO 19973	12 x106 cycles – SCVA08 10 x 106 cycles – SCVA10 10 x 106 cycles – SCVA20 6 x 106 cycles – SCVA32
Mounting	Preferably upright with solenoids on top
Press control	Valves are not approved for press clutch and brake applications
Ambient/Media temperature	-10 … +60°C (+14 … +140°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials	Housing: aluminium Seals: PUR or NBR
