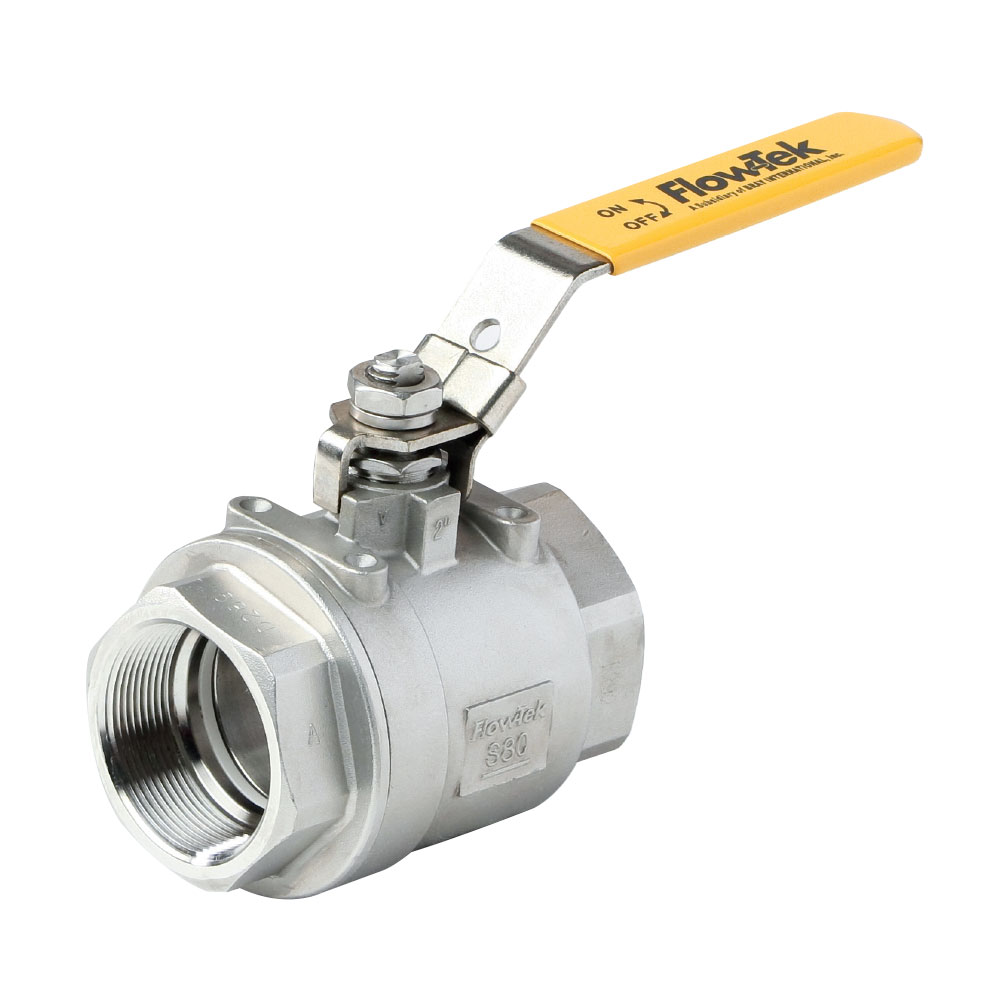

Series S80
Threaded Ball Valve
Specifications
| Size Range | ¼ – 4" (8 – 100mm) |
|---|---|
| Temperature Range | -50°F to 450°F (-46°C to 232°C) |
| Maximum Allowable Operating Pressure | 1000 psi WOG (69 Bar) |
| Shutoff Rating | Zero Leakage |
| Body Style | Two Piece |
| End Connections | Threaded – NPT |
| Body Materials | ASTM A351 Gr CF8M |
| Stem Materials | ASTM A479 Type 316 |
| Seat Materials | RPTFE |
| Ball Materials | 316SS |
| Design Standard | MSS SP-110 |
| Ports | Full Port |
| Applications | General Service, Air, Water, Oil & Gas |
Features & Benefits
The Series S80 threaded ball valves have been designed to meet the needs of the chemical, textile and process industries. Standard two piece valve bodies are available in Stainless Steel. Stainless Steel bodies are investment cast and solution annealed for the highest quality and added strength. All body castings are marked with a foundry heat number for full traceability. These quarter turn valves feature a full port design that minimizes pressure drops with smooth flow characteristics.
Other features include low operating torque, adjustable stem packing, blowout proof stems, and stainless steel safety latch handles.
Testing
- All Series S80 valves comply with MSS-SP 72
- All valves are tested in accordance with MSS-SP 72
- Vacuum Service to 29 inches Hg gauge.
