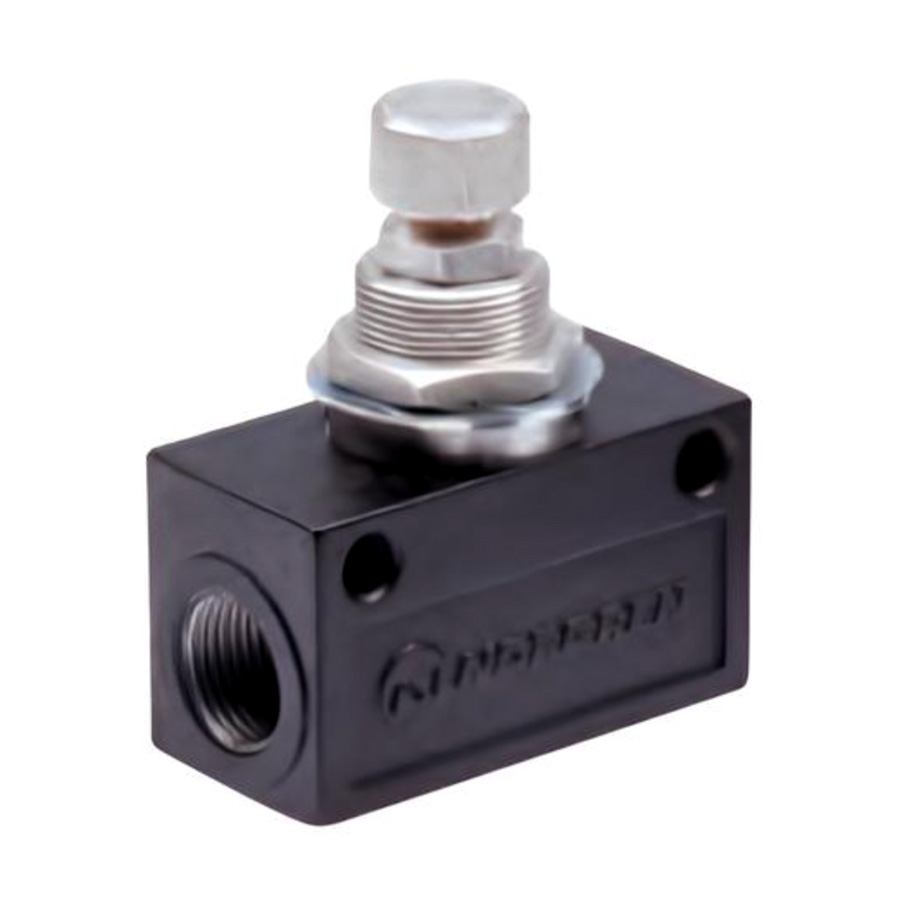

T1100 Bi-directional

Block form flow regulators

Technical features

Medium	Compressed air, filtered, lubricated or non-lubricated, inert gases
Operation	Flow regulators (bi-directional)
Operating pressure	0 … 10 bar (0 … 145 psi)
Port size	G 1/8, G 1/4, G1/2
Ambient/Media temperature	-20 … +80°C (-4 … +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials	Body: aluminium alloy (painted) Seals: low nitrile Internal parts: brass External parts: aluminium alloy (anodised) Needle: brass (nickel plated)
