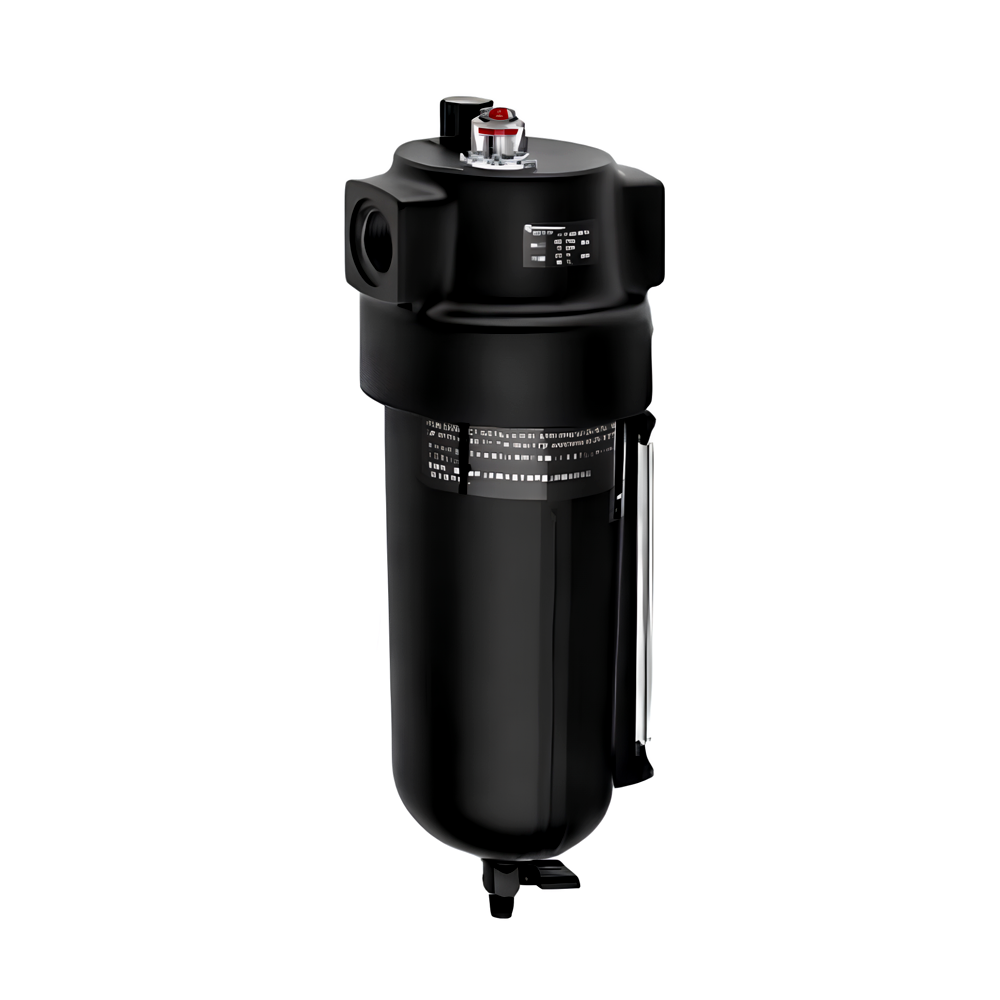

L17 Series oil fog lubricator

Micro-fog and oil-fog lubricators

Technical features

Product Type	Lubricators
Medium	Compressed air only
Maximum operating pressure	17 bar (246 psi)
Port size	3/4”, 1”, 1 1/4” or 1 1/2”
Start point (minimum flow required for lubricator operation)	3,8 dm3/s (8 scfm) at 6,3 bar (90 psi) inlet pressure
Bowl size	0,5 or 1 litre
Fluid/Ambient temperature	-20 … +80°C (0 … +176°F) Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35°F).
Materials	Body and bowl: Aluminium alloy Sight feed dome: Transparent PA Elastomers: CR & NBR
